Architectural & Millwork Details

A detail package: custom door, wood paneling system, and wall-mounted logo millwork.

Client

IDE 220 — Assignment 3

Role

Designer

Scope

Millwork details, custom door, signage

Year

2014

On this project

A drawing set focused on the craft of the build: a custom door with hardware callouts, a wood paneling system, and a wall-mounted interior logo. Every joint labeled, every material called.

01 — Cover

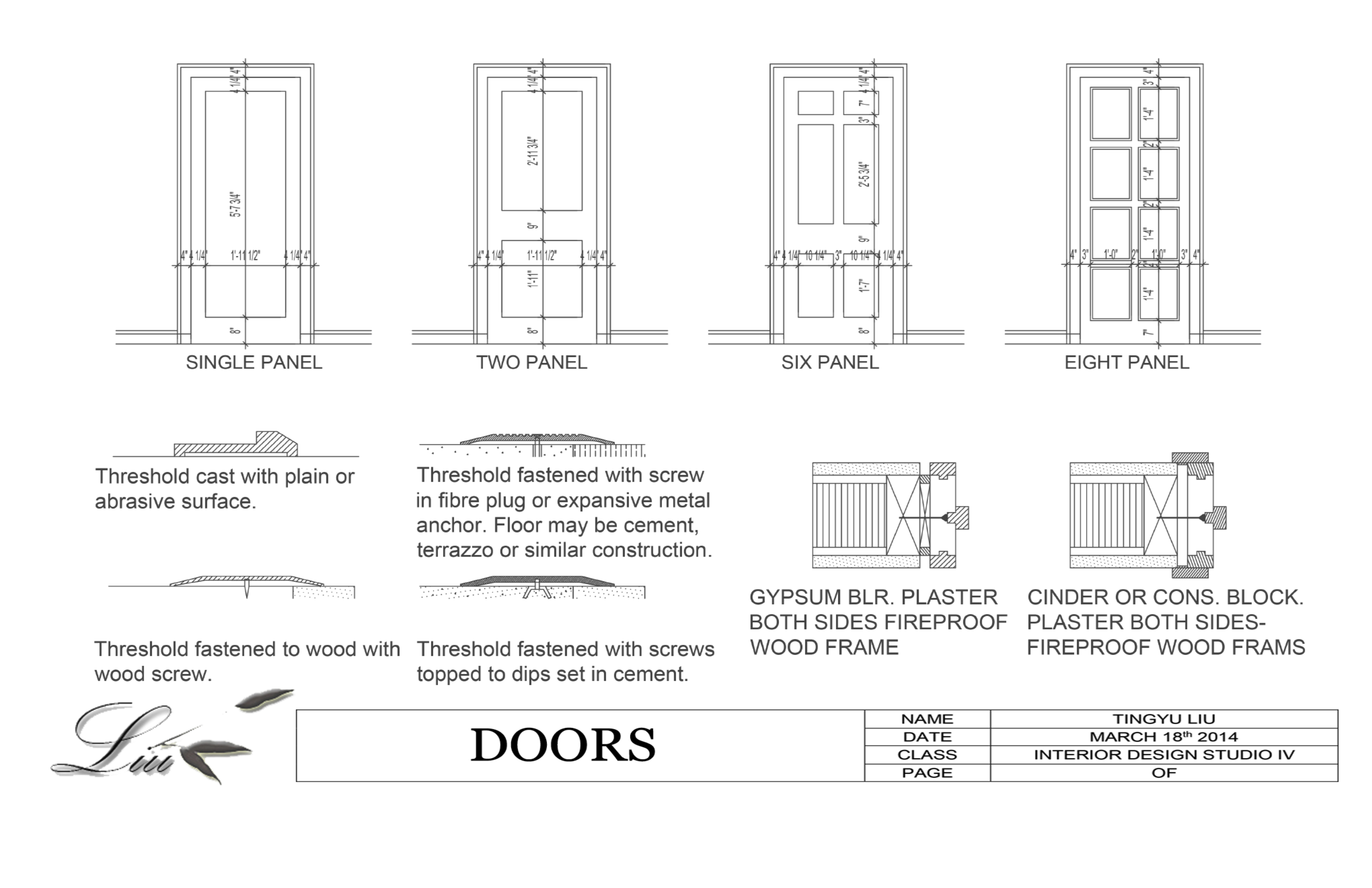

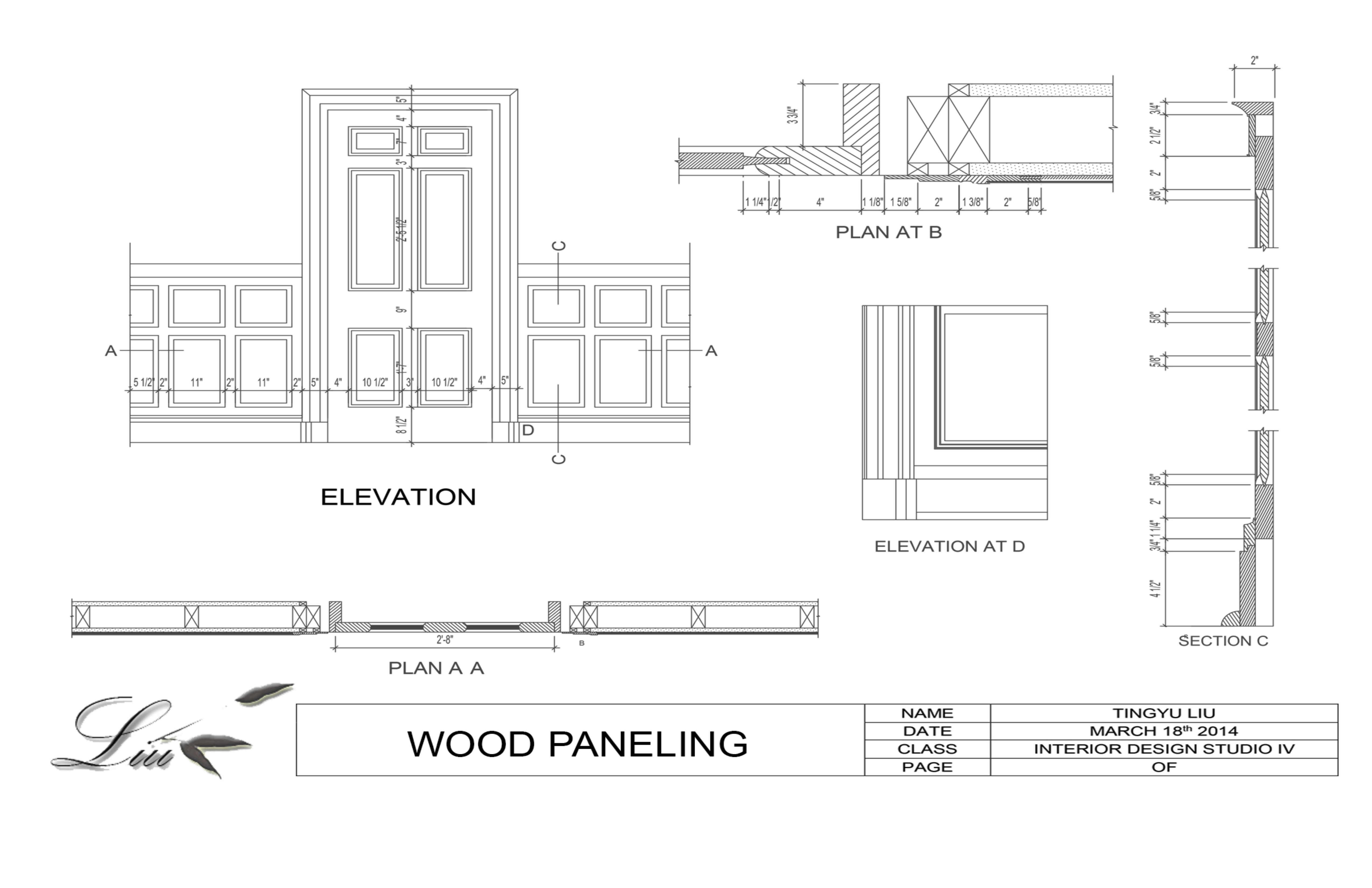

02 — Door + paneling

03 — Interior logo
